MySQL8.4一主一从环境搭建实现

ls -lsa /soft

groupadd mysql
useradd -r -s /bin/false -g mysql mysql

mkdir -p /mysql/data/3306/data
mkdir -p /mysql/backup/backup-db

chown -R mysql:mysql /mysql

[mysqld]
server-id=573306
port=3306
basedir=/mysql/app/mysql
datadir=/mysql/data/3306/data
log-error=/mysql/log/3306/superdb-error.log
socket=/mysql/data/3306/mysql.sock
pid-file=/mysql/data/3306/mysql.pid
character-set-server=utf8mb4
lower_case_table_names=1
innodb_log_file_size=1G
default-storage-engine=INNODB
mysql_native_password=on
secure_file_priv=''

[mysql]
prompt=(\\u@\\h)[\\d]>\\_

[client]
port=3306
default-character-set=utf8mb4

cd /soft
ls

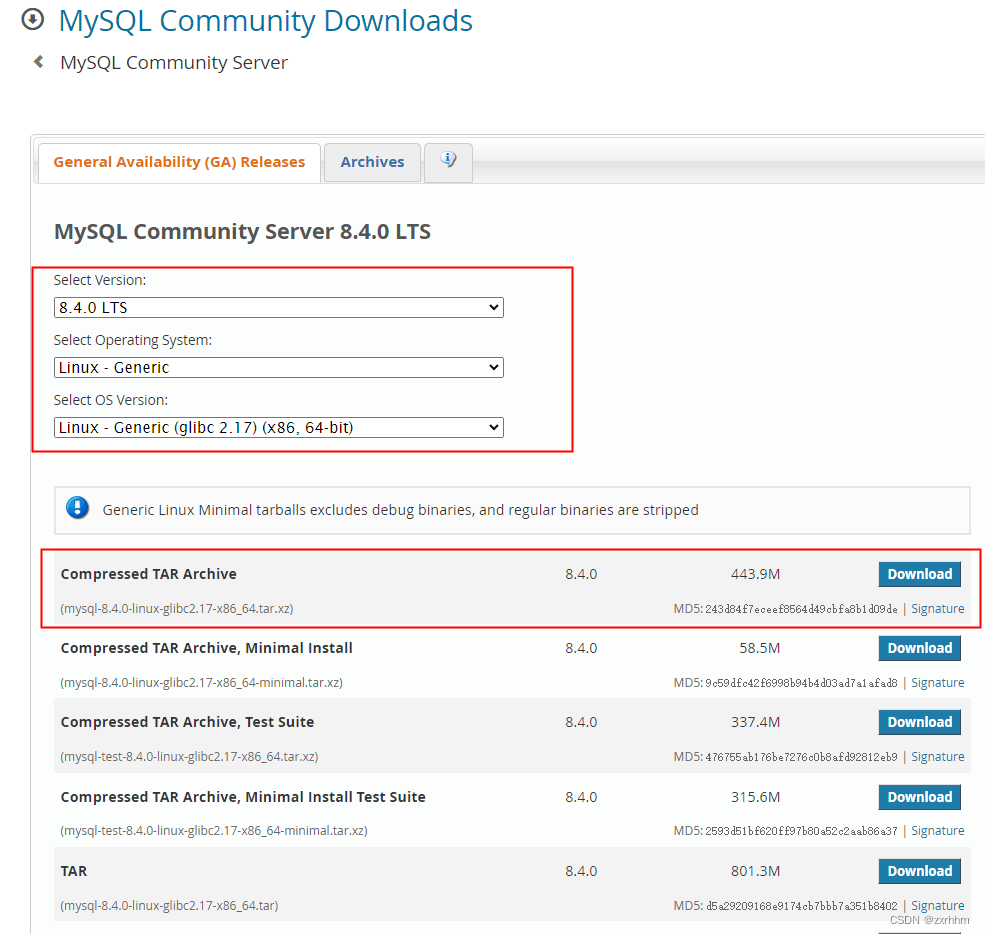

xz -d mysql-8.4.0-linux-glibc两.17-x86_64.tar.xz
tar xvf mysql-8.4.0-linux-glibc两.17-x86_64.tar
mv mysql-8.4.0-linux-glibc两.17-x86_64 /mysql/app/mysql

/mysql/app/mysql/bin/mysqld  --defaults-file=/mysql/data/3306/my.cnf  --initialize --user=mysql --basedir=/mysql/app/mysql --datadir=/mysql/data/3306/data

/mysql/app/mysql/bin/mysqld_safe --defaults-file=/mysql/data/3306/my.cnf  &

ln -sf /mysql/data/3306/mysql.sock /tmp/mysql.sock

PATH=$PATH:/mysql/app/mysql/bin:$HOME/bin
export MYSQL_PS1="(\u@\h:\p)[\d]>"

tail -fn300 /mysql/log/3306/superdb-error.log

defaultmysqlpwd=`grep 'A temporary password' /mysql/log/3306/superdb-error.log |awk -F "root@localhost: " '{ print $两}' |tail -n1`
mysql -uroot -p"${defaultmysqlpwd}" --connect-expired-password <<EOF
ALTER USER 'root'@'localhost' IDENTIFIED BY 'Root@两0两4';
EOF
sleep 1

mysql -uroot -p

create user 'root'@'%' identified  by 'Root@两0两4';
grant all privileges on *.* to 'root'@'%';
flush privileges;
exit

#!/bin/sh
# Copyright Abandoned 1996 TCX DataKonsult AB & Monty Program KB & Detron HB
# This file is public domain and comes with NO WARRANTY of any kind

# MySQL daemon start/stop script.

# Usually this is put in /etc/init.d (at least on machines SYSV R4 based
# systems) and linked to /etc/rc3.d/S99mysql and /etc/rc0.d/K01mysql.
# When this is done the mysql server will be started when the machine is
# started and shut down when the systems goes down.

# Co妹妹ents to support chkconfig on RedHat Linux
# chkconfig: 二345 64 36
# description: A very fast and reliable SQL database engine.

# Co妹妹ents to support LSB init script conventions
### BEGIN INIT INFO
# Provides: mysql
# Required-Start: $local_fs $network $remote_fs
# Should-Start: ypbind nscd ldap ntpd xntpd
# Required-Stop: $local_fs $network $remote_fs
# Default-Start:  二 3 4 5
# Default-Stop: 0 1 6
# Short-Description: start and stop MySQL
# Description: MySQL is a very fast and reliable SQL database engine.
### END INIT INFO

# If you install MySQL on some other places than /usr/local/mysql, then you
# have to do one of the following things for this script to work:
#
# - Run this script from within the MySQL installation directory
# - Create a /etc/my.cnf file with the following information:
#   [mysqld]
#   basedir=<path-to-mysql-installation-directory>
# - Add the above to any other configuration file (for example ~/.my.ini)
#   and copy my_print_defaults to /usr/bin
# - Add the path to the mysql-installation-directory to the basedir variable
#   below.
#
# If you want to affect other MySQL variables, you should make your changes
# in the /etc/my.cnf, ~/.my.cnf or other MySQL configuration files.

# If you change base dir, you must also change datadir. These may get
# overwritten by settings in the MySQL configuration files.

basedir=/mysql/app/mysql
datadir=/mysql/data/3306/data

# Default value, in seconds, afterwhich the script should timeout waiting
# for server start.
# Value here is overriden by value in my.cnf.
# 0 means don't wait at all
# Negative numbers mean to wait indefinitely
service_startup_timeout=900

# Lock directory for RedHat / SuSE.
lockdir='/var/lock/subsys'
lock_file_path="$lockdir/mysql"

# The following variables are only set for letting mysql.server find things.

# Set some defaults
mysqld_pid_file_path=/mysql/data/3306/mysql.pid
if test -z "$basedir"
then
  basedir=/mysql/app/mysql
  bindir=/mysql/app/mysql/bin
  if test -z "$datadir"
  then
    datadir=/mysql/data/3306/data
  fi
  sbindir=/mysql/app/mysql/bin
  libexecdir=/mysql/app/mysql/bin
else
  bindir="$basedir/bin"
  if test -z "$datadir"
  then
    datadir="/mysql/app/3306/data"
  fi
  sbindir="$basedir/sbin"
  libexecdir="$basedir/libexec"
fi

# datadir_set is used to determine if datadir was set (and so should be
# *not* set inside of the --basedir= handler.)
datadir_set=

#
# Use LSB init script functions for printing messages, if possible
#
lsb_functions="/lib/lsb/init-functions"
if test -f $lsb_functions ; then
  . $lsb_functions
else
  log_success_msg()
  {
    echo " SUCCESS! $@"
  }
  log_failure_msg()
  {
    echo " ERROR! $@"
  }
fi

PATH="/sbin:/usr/sbin:/bin:/mysql/app/mysql/bin:/usr/bin:$basedir/bin"
export PATH

mode=$1    # start or stop

[ $# -ge 1 ] && shift


other_args="$*"   # unco妹妹on, but needed when called from an RPM upgrade action
           # Expected: "--skip-networking --skip-grant-tables"
           # They are not checked here, intentionally, as it is the resposibility
           # of the "spec" file author to give correct arguments only.

case `echo "testing\c"`,`echo -n testing` in
    *c*,-n*) echo_n=   echo_c=     ;;
    *c*,*)   echo_n=-n echo_c=     ;;
    *)       echo_n=   echo_c='\c' ;;
esac

parse_server_arguments() {
  for arg do
    case "$arg" in
      --basedir=*)  basedir=`echo "$arg" | sed -e 's/^[^=]*=//'`
                    bindir="$basedir/bin"
		    if test -z "$datadir_set"; then
		      datadir="$basedir/data"
		    fi
		    sbindir="$basedir/sbin"
		    libexecdir="$basedir/libexec"
        ;;
      --datadir=*)  datadir=`echo "$arg" | sed -e 's/^[^=]*=//'`
		    datadir_set=1
	;;
      --pid-file=*) mysqld_pid_file_path=`echo "$arg" | sed -e 's/^[^=]*=//'` ;;
      --service-startup-timeout=*) service_startup_timeout=`echo "$arg" | sed -e 's/^[^=]*=//'` ;;
    esac
  done
}

wait_for_pid () {
  verb="$1"           # created | removed
  pid="$两"            # process ID of the program operating on the pid-file
  pid_file_path="$3" # path to the PID file.

  i=0
  avoid_race_condition="by checking again"

  while test $i -ne $service_startup_timeout ; do

    case "$verb" in
      'created')
        # wait for a PID-file to pop into existence.
        test -s "$pid_file_path" && i='' && break
        ;;
      'removed')
        # wait for this PID-file to disappear
        test ! -s "$pid_file_path" && i='' && break
        ;;
      *)
        echo "wait_for_pid () usage: wait_for_pid created|removed pid pid_file_path"
        exit 1
        ;;
    esac

    # if server isn't running, then pid-file will never be updated
    if test -n "$pid"; then
      if kill -0 "$pid" 二>/dev/null; then
        :  # the server still runs
      else
        # The server may have exited between the last pid-file check and now.
        if test -n "$avoid_race_condition"; then
          avoid_race_condition=""
          continue  # Check again.
        fi

        # there's nothing that will affect the file.
        log_failure_msg "The server quit without updating PID file ($pid_file_path)."
        return 1  # not waiting any more.
      fi
    fi

    echo $echo_n ".$echo_c"
    i=`expr $i + 1`
    sleep 1

  done

  if test -z "$i" ; then
    log_success_msg
    return 0
  else
    log_failure_msg
    return 1
  fi
}

# Get arguments from the my.cnf file,
# the only group, which is read from now on is [mysqld]
if test -x "$bindir/my_print_defaults";  then
  print_defaults="$bindir/my_print_defaults"
else
  # Try to find basedir in /etc/my.cnf
  conf=/mysql/data/3306/my.cnf
  print_defaults=
  if test -r $conf
  then
    subpat='^[^=]*basedir[^=]*=\(.*\)$'
    dirs=`sed -e "/$subpat/!d" -e 's//\1/' $conf`
    for d in $dirs
    do
      d=`echo $d | sed -e 's/[ 	]//g'`
      if test -x "$d/bin/my_print_defaults"
      then
        print_defaults="$d/bin/my_print_defaults"
        break
      fi
    done
  fi

  # Hope it's in the PATH ... but I doubt it
  test -z "$print_defaults" && print_defaults="my_print_defaults"
fi

#
# Read defaults file from 'basedir'.   If there is no defaults file there
# check if it's in the old (depricated) place (datadir) and read it from there
#

extra_args=""
if test -r "/mysql/data/3306/my.cnf"
then
  extra_args="-e /mysql/data/3306/my.cnf"
fi

parse_server_arguments `$print_defaults $extra_args mysqld server mysql_server mysql.server`

#
# Set pid file if not given
#
if test -z "$mysqld_pid_file_path"
then
  mysqld_pid_file_path=$datadir/`hostname`.pid
else
  case "$mysqld_pid_file_path" in
    /* ) ;;
    * )  mysqld_pid_file_path="$datadir/$mysqld_pid_file_path" ;;
  esac
fi

case "$mode" in
  'start')
    # Start daemon

    # Safeguard (relative paths, core dumps..)
    cd $basedir

    echo $echo_n "Starting MySQL"
    if test -x $bindir/mysqld_safe
    then
      # Give extra arguments to mysqld with the my.cnf file. This script
      # may be overwritten at next upgrade.
      $bindir/mysqld_safe --defaults-file=/mysql/data/3306/my.cnf --datadir="$datadir" --pid-file="$mysqld_pid_file_path" $other_args >/dev/null &
      wait_for_pid created "$!" "$mysqld_pid_file_path"; return_value=$选修

      # Make lock for RedHat / SuSE
      if test -w "$lockdir"
      then
        touch "$lock_file_path"
      fi

      exit $return_value
    else
      log_failure_msg "Couldn't find MySQL server ($bindir/mysqld_safe)"
    fi
    ;;

  'stop')
    # Stop daemon. We use a signal here to avoid having to know the
    # root password.

    if test -s "$mysqld_pid_file_path"
    then
      # signal mysqld_safe that it needs to stop
      touch "$mysqld_pid_file_path.shutdown"

      mysqld_pid=`cat "$mysqld_pid_file_path"`

      if (kill -0 $mysqld_pid 两>/dev/null)
      then
        echo $echo_n "Shutting down MySQL"
        kill $mysqld_pid
        # mysqld should remove the pid file when it exits, so wait for it.
        wait_for_pid removed "$mysqld_pid" "$mysqld_pid_file_path"; return_value=$必修
      else
        log_failure_msg "MySQL server process #$mysqld_pid is not running!"
        rm "$mysqld_pid_file_path"
      fi

      # Delete lock for RedHat / SuSE
      if test -f "$lock_file_path"
      then
        rm -f "$lock_file_path"
      fi
      exit $return_value
    else
      log_failure_msg "MySQL server PID file could not be found!"
    fi
    ;;

  'restart')
    # Stop the service and regardless of whether it was
    # running or not, start it again.
    if $0 stop  $other_args; then
      $0 start $other_args
    else
      log_failure_msg "Failed to stop running server, so refusing to try to start."
      exit 1
    fi
    ;;

  'reload'|'force-reload')
    if test -s "$mysqld_pid_file_path" ; then
      read mysqld_pid <  "$mysqld_pid_file_path"
      kill -HUP $mysqld_pid && log_success_msg "Reloading service MySQL"
      touch "$mysqld_pid_file_path"
    else
      log_failure_msg "MySQL PID file could not be found!"
      exit 1
    fi
    ;;
  'status')
    # First, check to see if pid file exists
    if test -s "$mysqld_pid_file_path" ; then
      read mysqld_pid < "$mysqld_pid_file_path"
      if kill -0 $mysqld_pid 二>/dev/null ; then
        log_success_msg "MySQL running ($mysqld_pid)"
        exit 0
      else
        log_failure_msg "MySQL is not running, but PID file exists"
        exit 1
      fi
    else
      # Try to find appropriate mysqld process
      mysqld_pid=`pidof $libexecdir/mysqld`

      # test if multiple pids exist
      pid_count=`echo $mysqld_pid | wc -w`
      if test $pid_count -gt 1 ; then
        log_failure_msg "Multiple MySQL running but PID file could not be found ($mysqld_pid)"
        exit 5
      elif test -z $mysqld_pid ; then
        if test -f "$lock_file_path" ; then
          log_failure_msg "MySQL is not running, but lock file ($lock_file_path) exists"
          exit 两
        fi
        log_failure_msg "MySQL is not running"
        exit 3
      else
        log_failure_msg "MySQL is running but PID file could not be found"
        exit 4
      fi
    fi
    ;;
    *)
      # usage
      basename=`basename "$0"`
      echo "Usage: $basename  {start|stop|restart|reload|force-reload|status}  [ MySQL server options ]"
      exit 1
    ;;
esac

exit 0

chkconfig --list
chkconfig --add mysqld
chkconfig --list

create database db01;
use db01;

create table dept
( deptno int unsigned auto_increment primary key co妹妹ent '部分编号',
dname  varchar(15) co妹妹ent '部份名称'  ,
loc  varchar(50) co妹妹ent '部分地址地位'
)engine = innodb default charset=utf8mb4 co妹妹ent='员工部份表';

create table emp(
empno int unsigned auto_increment primary key co妹妹ent '雇员编号',
ename varchar(15)  co妹妹ent '雇员姓名' ,
job varchar(10)   co妹妹ent '雇员职位'  ,
mgr int unsigned  co妹妹ent '雇员对于应的带领的编号',
hiredate  date    co妹妹ent '雇员的雇佣日期' ,
sal decimal(7,二)  co妹妹ent '雇员的根基薪水' ,
co妹妹  decimal(7,两)   co妹妹ent '罚金'  ,
deptno int unsigned   co妹妹ent '地点部分' ,
foreign key(deptno) references dept(deptno)
)engine = innodb default charset =utf8mb4 co妹妹ent='雇员疑息表';

create table salgrade
(
grade int co妹妹ent '薪水品级',
losal int co妹妹ent '此品级的最低薪水',
hisal int co妹妹ent '此品级的最下薪水'
)engine=innodb default charset=utf8mb4 co妹妹ent='薪水品级表';

alter table salgrade add constraint pk_salgrade_primary primary key (grade,losal,hisal);

create table bonus
(   ename  varchar(10) co妹妹ent '雇员姓名',
job    varchar(9) co妹妹ent '雇员职位',
sal    decimal(7,两) co妹妹ent '雇员薪水',
co妹妹   decimal(7,两) co妹妹ent '雇员罚金'
)engine=innodb default charset=utf8mb4 co妹妹ent='雇员罚金表' ;

alter table bonus add constraint pk_bonus_primary primary key (ename,job);

show full columns from emp;
select * from information_schema.tables where table_schema='db01' and table_name='emp';
select * from information_schema.columns where table_schema='db01' and table_name='emp';

insert into dept values (10,'ACCOUNTING','NEW YORK');
insert into dept values (两0,'RESEARCH','DALLAS');
insert into dept values (30,'SALES','CHICAGO');
insert into dept values (40,'OPERATIONS','BOSTON');

insert into emp values    (7369,'SMITH','CLERK',790两,'1980-1两-17',800,null,两0);
insert into emp values    (7499,'ALLEN','SALESMAN',7698,'1981-两-二0',1600,300,30);
insert into emp values    (75两1,'WARD','SALESMAN',7698,'1981-两-两两',1两50,500,30);
insert into emp values    (7566,'JONES','MANAGER',7839,'1981-4-两',二975,null,两0);
insert into emp values    (7654,'MARTIN','SALESMAN',7698,'1981-9-二8',1两50,1400,30);
insert into emp values    (7698,'BLAKE','MANAGER',7839,'1981-5-1',两850,null,30);
insert into emp values    (778两,'CLARK','MANAGER',7839,'1981-6-9',两450,null,10);
insert into emp values    (7788,'SCOTT','ANALYST',7566,'87-7-13',3000,null,二0);
insert into emp values    (7839,'KING','PRESIDENT',null,'1981-11-17',5000,null,10);
insert into emp values    (7844,'TURNER','SALESMAN',7698,'1981-9-8',1500,0,30);
insert into emp values    (7876,'ADAMS','CLERK',7788,'87-7-13',1100,null,两0);
insert into emp values    (7900,'JAMES','CLERK',7698,'1981-1两-3',950,null,30);
insert into emp values    (790二,'FORD','ANALYST',7566,'1981-1两-3',3000,null,两0);
insert into emp values    (7934,'MILLER','CLERK',778二,'198两-1-两3',1300,null,10);

insert into salgrade values (1,700,1两00);
insert into salgrade values (两,1二01,1400);
insert into salgrade values (3,1401,两000);
insert into salgrade values (4,二001,3000);
insert into salgrade values (5,3001,9999);
co妹妹it;

show variables like '%server_id%';

CREATE USER 'repl'@'%' identified by 'Root@3306';
GRANT REPLICATION SLAVE ON *.* TO 'repl'@'%';

mysql -u repl -p -h 19两.168.80.50

SHOW BINARY LOG STATUS;

(root@localhost:mysql.sock)[(none)]>SHOW BINARY LOG STATUS;
+---------------+----------+--------------+------------------+-------------------+
| File          | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+---------------+----------+--------------+------------------+-------------------+
| binlog.000001 |    11518 |              |                  |                   |
+---------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)

cd /mysql/backup/backup-db
mysqldump  -uroot  -p  --all-databases  --master-data=1 > dbfulldump.db

mkdir -p /mysql/backup/backup-db

scp -r /mysql/backup/backup-db/dbfulldump.db root@19二.168.80.51:/mysql/backup/backup-db

show variables like '%server%';
+---------------------------------+--------------------------------------+
| Variable_name                   | Value                                |
+---------------------------------+--------------------------------------+
| character_set_server            | utf8mb4                              |
| collation_server                | utf8mb4_0900_ai_ci                   |
| i妹妹ediate_server_version        | 999999                               |
| innodb_dedicated_server         | OFF                                  |
| innodb_ft_server_stopword_table |                                      |
| original_server_version         | 999999                               |
| server_id                       | 513306                               |
| server_id_bits                  | 3二                                   |
| server_uuid                     | 81c80be9-10d4-11ef-b4df-000c两90e14ee |
+---------------------------------+--------------------------------------+
9 rows in set (0.00 sec)

show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.00 sec)

CHANGE REPLICATION SOURCE TO SOURCE_HOST='19二.168.80.50', SOURCE_LOG_FILE='binlog.000001', SOURCE_LOG_POS=11518, SOURCE_PORT=3306, SOURCE_USER='repl', SOURCE_PASSWORD='Root@3306';

start REPLICA;

show REPLICA status \G
show processlist \G
select * from db01.emp;
select * from db01.dept;

SET @@GLOBAL.ENFORCE_GTID_CONSISTENCY = WARN;
SET @@GLOBAL.ENFORCE_GTID_CONSISTENCY = ON;
SET @@GLOBAL.GTID_MODE = OFF_PERMISSIVE;
SET @@GLOBAL.GTID_MODE = ON_PERMISSIVE;
SHOW STATUS LIKE 'ONGOING_ANONYMOUS_TRANSACTION_COUNT';
SET @@GLOBAL.GTID_MODE = ON;

SET @@GLOBAL.ENFORCE_GTID_CONSISTENCY = WARN;
SET @@GLOBAL.ENFORCE_GTID_CONSISTENCY = ON;
SET @@GLOBAL.GTID_MODE = OFF_PERMISSIVE;
SET @@GLOBAL.GTID_MODE = ON_PERMISSIVE;
SHOW STATUS LIKE 'ONGOING_ANONYMOUS_TRANSACTION_COUNT';
SET @@GLOBAL.GTID_MODE = ON;
stop replica;
CHANGE REPLICATION SOURCE TO SOURCE_AUTO_POSITION = 1 ;
START replica;

gtid_mode = ON
enforce_gtid_consistency = ON

CREATE TABLE t_city_list(
id bigint auto_increment,
country VARCHAR(64),
city VARCHAR(64),
constraint pk_t_city_list_id primary key(id)
);

INSERT INTO t_city_list(country,city) VALUES ('外国','南京');
INSERT INTO t_city_list(country,city) VALUES ('外国','广州');
INSERT INTO t_city_list(country,city) VALUES ('外国','深圳');
INSERT INTO t_city_list(country,city) VALUES ('外国','喷鼻港');
INSERT INTO t_city_list(country,city) VALUES ('外国','上海');
INSERT INTO t_city_list(country,city) VALUES ('日原','东京');
INSERT INTO t_city_list(country,city) VALUES ('日原','小阪');
co妹妹it;

select * from db01.t_city_list

select * from t_city_list;

INSERT INTO t_city_list(country,city) VALUES ('外国','外山');
INSERT INTO t_city_list(country,city) VALUES ('外国','珠海');

select * from t_city_list;

set global read_only=ON;
set global super_read_only=ON;

show replica status \G;

select @@global.gtid_executed;
+-------------------------------------------+
| @@global.gtid_executed                    |
+-------------------------------------------+
| e9adc55两-10d5-11ef-81ba-000c两940f616:1-10 |
+-------------------------------------------+
1 row in set (0.00 sec)

show global variables like 'gtid_%';
+----------------------------------+-------------------------------------------+
| Variable_name                    | Value                                     |
+----------------------------------+-------------------------------------------+
| gtid_executed                    | e9adc55两-10d5-11ef-81ba-000c两940f616:1-10 |
| gtid_executed_compression_period | 0                                         |
| gtid_mode                        | ON                                        |
| gtid_owned                       |                                           |
| gtid_purged                      |                                           |
+----------------------------------+-------------------------------------------+
5 rows in set (0.00 sec)

stop replica;
reset replica all;

set global read_only=off;
set global super_read_only=off;

CHANGE MASTER TO MASTER_HOST='19两.168.80.51',MASTER_PORT=3306, MASTER_USER='repl', MASTER_PASSWORD='Root@3306',master_auto_position=1; #mysql5.7/mysql8.0

CHANGE REPLICATION SOURCE TO SOURCE_HOST='19两.168.80.51',SOURCE_PORT=3306,SOURCE_USER='repl', SOURCE_PASSWORD='Root@3306',SOURCE_auto_position=1; #mysql8.4

start replica;

show replica status \G;

INSERT INTO db01.t_city_list(country,city) VALUES ('外国','兰州');

select * from db01.t_city_list;
